The Fluke 287 and Fluke 179 are both high-quality multimeters designed for different applications, each with its own set of features and specifications.
🏷️ Fluke Multimeter Deals ⭐⭐⭐⭐⭐
Comparison Table for Fluke 287 vs 179
Feature/Specification | Fluke 287 | Fluke 179 |
---|---|---|
💳 Price | Check Price | Check Price |
Type | True-RMS Electronics Logging Multimeter | True-RMS Digital Multimeter |
Display | Large 50,000 count, 1/4 VGA display with white backlight ✅ | 6,000 count digital display with backlight |
Logging Capability | Yes, with TrendCapture and multiple logging sessions without download ✅ | No |
Basic DC Accuracy | 0.025% ✅ | 0.09% |
AC Bandwidth | 100 kHz ✅ | 1 kHz |
Temperature Measurement | Yes, with a range of -200°C to 1350°C (-328°F to 2462°F) ✅ | Yes, with a range of -40°C to +400°C (-40°F to +752°F) |
Capacitance Range | Up to 100 mF ✅ | Up to 9,999 µF |
Current Measurement | Up to 10 A (20 A for 30 seconds) | Up to 10 A (20 A for 30 seconds) |
Safety Rating | CAT III 1000V, CAT IV 600V | CAT III 1000V, CAT IV 600V |
Size (HxWxL) | 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) | 4.3 x 9.0 x 18.5 cm (1.7 x 3.5 x 7.3 in) ✅ |
Weight | 870.9 g (28 oz) | 420 g ✅ |
Battery Life | 100 hours minimum, 200 hours in logging mode | 200 hours typical ✅ |
Additional Features | Real-time clock, relative mode, peak capture, optional FlukeView software | Built-in thermometer, Min/Max/Avg recording, analog bar graph |
Key Differences
- Display and Logging: The Fluke 287 offers a more advanced display and logging capabilities with its TrendCapture feature, which allows users to log data and review it without needing a PC. The Fluke 179 lacks logging capabilities and has a simpler display.
- Accuracy and Bandwidth: The Fluke 287 provides higher basic DC accuracy (0.025%) and a wider AC bandwidth (100 kHz) compared to the Fluke 179, which has a basic DC accuracy of 0.09% and an AC bandwidth of 1 kHz.
- Size and Weight: The Fluke 179 is more compact and lighter, making it more portable compared to the larger and heavier Fluke 287.
- Temperature Measurement: Both models include temperature measurement, but the Fluke 287 offers a broader range.
Summary
Overall, the Fluke 287 is more suitable for applications requiring high accuracy, extensive logging, and data analysis capabilities.

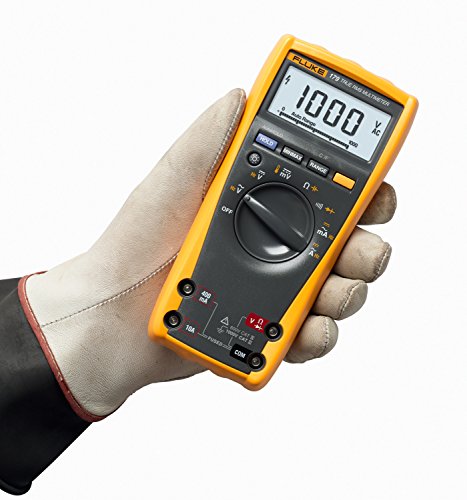

The Fluke 179 is ideal for general-purpose troubleshooting and maintenance tasks, offering ease of use and portability.
